Hebei Jialang Petroleum Drilling Equipment Co., Ltd. is located in Anping County, Hebei Province, which is known as the Hometown of Wire Mesh in

China. After years of hard work, the company has developed into a comprehensive manufacturer integrating scientific research, production and sales.

The company has advanced technology and testing equipment, and has passed ISO9001 international quality system certification.

Our main products are stainless steel meshes of various specifications including oil vibrating screen, mud vibrating screen, mud vibrating screen

accessories, de-sander accessories, high efficiency cleaner’s double-layer bonding net, G411 high-frequency frame screen, GIS-2 high-frequency

double-layer straight-line vibrating screen, galvanized steel wire, acid-washed phosphated steel wire, and annealed black steel wire. The products are

sold to major cities and major oil fields at home and abroad. Our company adopts advanced technology, high-quality materials, scientific management,

and complete product testing methods in our production. Our products have established a good reputation among our customers.

Our company upholds the philosophy of “Customer First, Quality above All and Reputation Unreplaced”. We are looking forward to establishing close

trade relations for win-win with domestic and foreign merchants based on our high quality products, superior reputation and preferential price.

Our Products
Stainless Steel Wire Mesh
Standard Width:0.6m-1.5m
Standard Length:About 30m/roll
Wire Diameter:0.25mm-2.3mm
Mesh(inch):3-400 mesh
Mesh hole:6.27-0.0385mm
Material:SS302、304、304L、316、316L and so on.
Weaving Pattern:Square(plain weave,twill weave)、dutck(plain dutch weave,twill-dutch weave,double warp dutch weave,weave,reverse plain dutch

weave,reverse twill dutch weave)
Property:with anti-acid,anti-alkali,anti-high temperature,wear-resistant properties.
Application:used in mining,petroleum,chemical,food,pharmaceutical,machinery manufactuning and other industries.

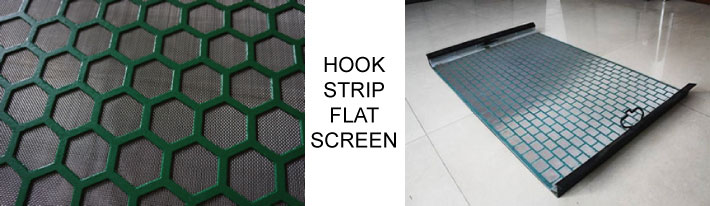

Flat Type Mud Vibrating Screen

The Flat Type Mud Vibrating Screen is the most popular Oil Mud Vibrating currently.The main features are as follows:
1)The product is generally made by 2 or 3 layers of 304/316 stainless steel wire mesh and a metal plate with openings.Because different size of

mesh,and different size of the corresponding open size of the metal plate,we will strive to achieve the maximum effective screening area under the

insurance of using strength.
2)The upper layer of thin mesh cloth with the middle layer and the bottom layer of thick wire mesh cloth,and the following metal plate for customers

to choose different thicknesses,which greatly strengthen the use strength of the whole screen cloth.Due to different model and different customers

needs,the lower metal plate can be punched into hexagonal,rectangular,square,etc,relying on the upper sieve cloth,the whole screen is divided into a

plurality of different independent small mesh surfaces to prevent local excessive damage.Better extended service life.2

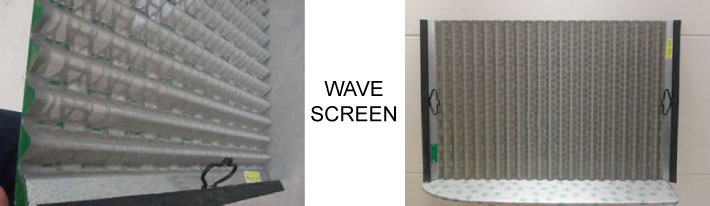

The Wave Type Mud Vibrating Screen
The Wave Vibrating Screen is named for its unique wave shape.The main features are as follows:
The product is generally made of 2 or 3 layers of 304 or 316 stainless steel mesh after composite bending forming plus metal plate with

perforation.The screen mesh and the lower metal plate are closely bonded into a wave shape,so that the screenning and filtering area is greatly

improved by 120% to 150% compared with the plate vibrating screen,and a better treatment effect is achieved.

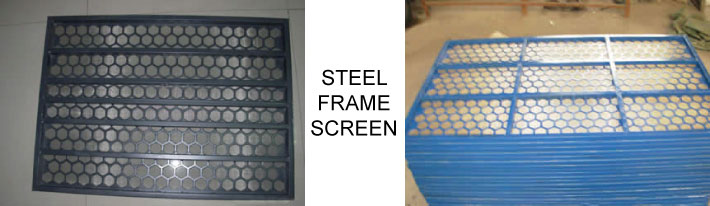

Frame Type Mud Vibrating Screen
The main features of the frame vibrating screen are as follows:
1)The product is agglutinated by metal frame and 2 or 3 layers of 304 or 316 Stainless Steel Wire Mesh.Due to the different mesh size and punch

size,the screen screening effect is more refined.
2)The lower layer of high-strength metal frame and support ribs and the upper layer of moderately tensioned screen cloth are tightly combined to

greatly enhance the strength and durability of the screen,to achieve better screen filtration effect.The mesh size is generally from 20 mesh to 325

mesh.The screen cloth is provided with a special rubber stopper to repair the damage of the mesh surface,which can save time for replacing the screen

cloth,increase efficiency and reduce cost.

Injection Frame Type Screen Mesh
The Injection Frame Type Screen Mesh consists of a polyurethane material frame combined with 2-3 layers of 304 or 316 stainless steel mesh.The main

features are as follows.
1)High-strength injection molding frame,and moderately tight stainless steel mesh,forming a whole,greatly enhancing the capacity of the screen.
2)The mesh is divided into a plurality of independent small mesh surfaces to prevent excessive expansion caused by local damage.Combined with the

improved performance of the rubber plug,it extends the life of the screen.
3)The screen is easy to install and the wedge-shaped quick tensioning device greatly saves the time for replacing the screen cloth.
4)The polyurethane material frame of high-quality materials greatly enhances the corrosion resistance of the screen,has better shock absorption

performance,and prolongs the use time of the screen.

New Type Mud Vibrating Screen
According to the needs of customers,our company can select different filtering precision,different meshes and different specifications of stainless

steel screen cloth for the vibrating screens based on specification drawings.The processing is customized,reasonable matching,specific details,you can

call us for more information.

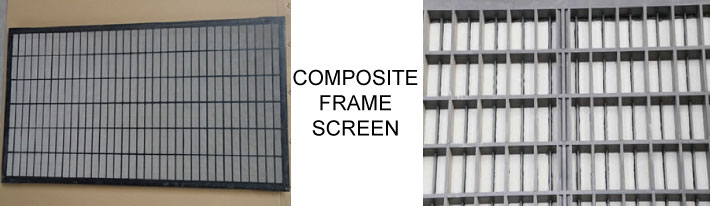

Composite Oil Mesh
The Composite Oil Mesh has a similar structure with Flat Type Screen.The main features are as follows.
Usually,the two-layer to four-layer 304 stainless steel mesh cloth is composited and tightly bonded without a metal pallet.Effective filtration area

is large.The mesh wire in the bottom of screen is relatively thick,which not only palys a role of filtering and sleving with the upper layer screen

cloth,but also plays a supporting role,thereby prolonging the service life of the screen.

Mine screen
Material:stainless steel wire
Mine screen is a newly developed product in the wire mesh industry.It’s characteristics are easy to leak,wear and corrosion.The cut section of mesh

wire is trapezoidal.The gap is narrow to wide from up to down.Widely used in mining,coal,petroleum,fertilizer,food,salt,environment protection and

other industries.

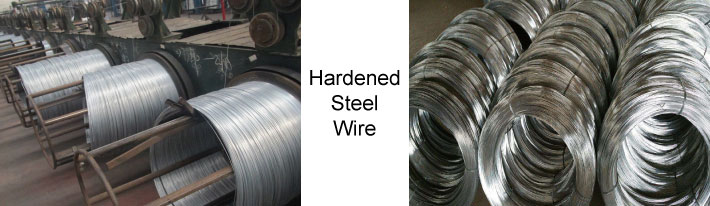

Hardened steel wire
1.Phosphating coated steel wire rope,the steel wire is phosphating with manganese or zinc manganese.The wear resistance,corrosion resistance and rust

resistance of the steel wire are fully jumped.The fatigue life is about 3 times than the structural smooth steel wire rope.Please verify the fatigue

through fatigue test. Lifespan(It is an uograded product of smooth steel wire rope.It can also be used instead of galvanized steel wire rope with thin

zinc layer after plating. At present,the supply is still tight and the supply is in short supply.)
2.Galvanized steel wire rope,hot-dipped galvanized and electric galvanized
3.Stainless steel wire rope,304 or 316 stainless steel.
4.Plastic coated steel wire rope,steel wire rope foundation,outer layer coated with polyethylene or polypropylence
5.Glossy wire rope ,will be completely replaced by phosphate coated steel wire rope.
